Precision, quality and performance - experience clearer vision

Menicon ⍺ ORTHO–K embodies the spirit of Japanese craftsmanship, where each lens is customized to meet the unique needs of each patient. Produced through a high-precision manufacturing process, each lens undergoes rigorous quality control testing to ensure it meets exacting standards for quality and performance.

Menicon ⍺ ORTHO–K can be easily fitted through either diagnostic set fitting or empirical calculation.



Product features

Alpha ORTHO K image_3

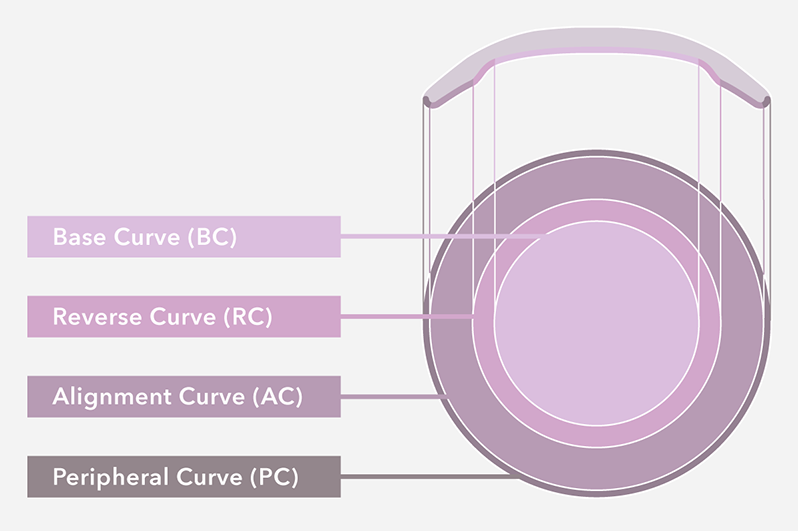

Unique, meticulously crafted design

Four distinct zones and five curves: a central optical zone, a reverse zone, an alignment zone, and a peripheral zone. Dual aspherical alignment curve zones provide an optimized fit, enhancing comfort and stability. Additionally, the AC-toric design ensures superior centration on toric corneas, making it ideal for patients requiring precise alignment and high performance.

AOK 4

Effortless lens selection and ordering process

Our streamlined process allows you to choose an initial trial lens and quickly determine the final parameters for a custom fit. Alternatively, you can opt for empirical ordering - simply provide your patient's HVID, manifest refraction, and keratometry readings or topography map, and we’ll handle the calculations to ensure a precise fit.

CL alpha

Customizable fit for optimal vision correction

Lenses are designed with adjustable parameters. These customization options ensure a precise fit allowing you to reach the desired outcome with every patient.

Fitting philosophy

Menicon ⍺ ORTHO–K is fitted using a diagnostic trial set.

The diagnostic set consists of 40 trial lenses with a diameter of 10.5mm and a +0.75D lens power.*

Alternatively, you can fit the lens empirically by providing the following information: HVID, keratometry reading or topography map, and manifest refraction.

*Vary according to the countries



Product details

  Menicon α ORTHO-K Menicon α ORTHO-K AC Toric
Base curve (K1/K2) 7.18 to 10.15mm 7.18 to 10.15mm
Diameter 9.60 to 11.60mm 9.60 to 11.60mm
Target Power

Up to -6.00D*

*Vary according to the countries

Up to -6.00D*

*Vary according to the countries

Cylinder (WTR astigmatism) ≤ 1.00D ≤ 1.00D
Lens Power +0.75D +0.75D
Material Dk 104 x10 -11 ISO Fatt method(cm2/sec) ⋅mLO2/(mLO2/ml x mmHg)⟩ Dk 104 x10 -11 ISO Fatt method(cm2/sec) ⋅mLO2/(mLO2/ml x mmHg)⟩
Handling tint Violet/ Blue Violet/ Blue
Recommended replacement 1 year 1 year

Use Menicon ⍺ ORTHO-K with

We provide a great range of lens care products that we recommend to your customer to optimise their wearing experience.
