The perfect balance between innovation and insight

Research shows that the shape of the limbus and the sclera is typically linear and not curved.1 Furthermore, in  98.5% of cases, the scleral surface is toric and not spherical.3 This was the basis for the design of Menicon Time XL. The goal of the bitangential design was to realise an optimal distribution of pressure of the lens on the conjunctiva. This results in higher tolerance, which allows for longer daily use.2,3.4

Menicon Time XL has a bitangential landing zone for a simple fit and good stability. The lens fit can be assessed in as little as 30 mins of wearing time.



Product features

TimeXL_lens-design

Unique design

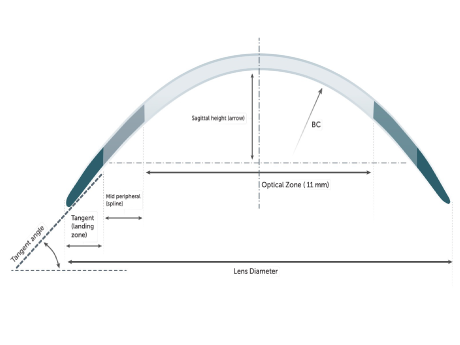

3 zones: Central optical zone,  Mid-peripheral limbal zone and Scleral landing zone.

TimeXL_periphery

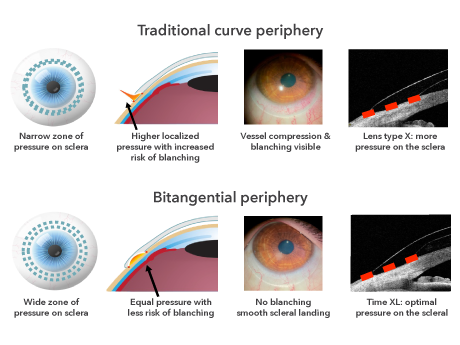

Bitangential periphery

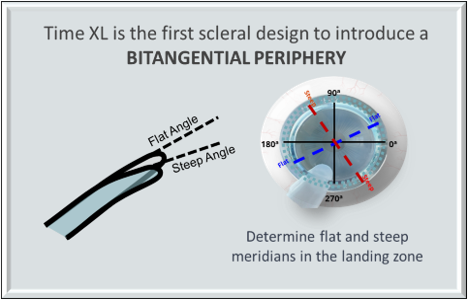

The first scleral lens with a bitangential periphery for a soft landing on the sclera. The lens was designed using the latest research on the shape of the eye.

TimeXL_Menicon-Z

Menicon Z material

Hyper-oxygen material ensures ample oxygen flow to the eye, while advanced surface treatment enhances wettability for superior comfort.

TimeXL_conditions

Accommodates a wide variety of ocular conditions

Menicon Time XL is available in single vision and multifocal designs to help address various corneal irregularities, refractive errors and ocular surface diseases.

Fitting philosophy

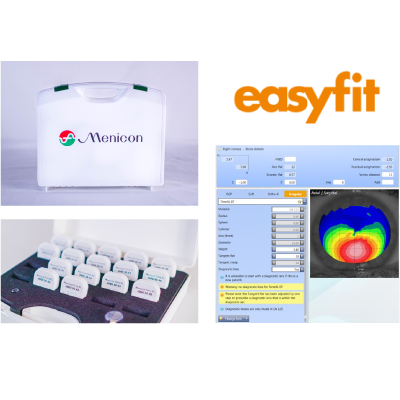

Menicon Time XL can be fitted utilising two approaches: Diagnostic set and Easyfit software.

The diagnostic set consists of 16 trial lenses with different heights and tangent angles. All lenses have a diameter of 16.0 mm*, a base curve of 8.4 mm, plano power, and a toric periphery. The toricity is expressed in tangent angles with a difference of 6° between the flat and steep meridian for all diagnostic lenses.

Alternatively, you can use Easyfit software to determine the first trial lens. The programme uses the corneal topography measurements, HVID and refraction to recommend the initial trial lens to start with.

*Diagnostic set of 17mm diameter is also available on request.

TimeXL_fitting-2



Product details

Sagittal height 2600 to 5500µm (100µm steps)
Tangent, Flat and Steep meridian Both meridians are available from 28º to 50º (2º steps)
Base curve 7.40 to 9.40mm (0.20mm steps)
Diameter 14.00 to 17.50mm (0.50mm steps)
Power -30.00D to +35.00D (0.25D steps)
Material

Menicon Z: Dk 163 x10 -11(cm2/sec) ⟨mLO2/(mL x mmHg)⟩

Optimum Extreme: Dk 125 x10 -11(cm2/sec) ⟨mLO2/(mL x mmHg)⟩
Handling tint

Menicon Z: Clear

Optimum Extreme: Clear and Blue
Wearing type Daily wear
Recommended replacement Yearly
Additional options Multifocal design, Aberration Control (AC) and Limbal Clearnce Factor (LCF)
Cylinder -0.75D to -5.00D (0.25D steps)
Axis 1º to 180º (1º steps)

Use Menicon Time XL with

We provide a great range of lens care products that we recommend to your customer to optimise their wearing experience.

MeniCare Plus

Multipurpose solution for RGP lenses

Learn more

PlatinCare

Hydrogen peroxide solution for soft and RGP lenses

Learn more

Progent

Cleaner for RGP lenses

Learn more

SPRAY&CLEAN

Cleaner for RGP lenses

Learn more

MeniLAB

Disinfectant for RGP lenses

Learn more
  1. Van der Worp E, Graf T, Caroline PJ. Exploring beyond the corneal borders. Contact Lens Spectrum 2010; 25 (6):26–32.
  2. Van der Worp E. A Guide to Scleral Lens Fitting (monographyonline). Pacific University Common Knowledge: Books and Monographs. 2010. Available at: http://commons.pacificu.edu/cgi/viewcontent.cgi?article=1003&context=mono. Consulted on 13 June 2013.
  3. Visser, MedicalApplications and Outcomes of Bi-tangential Scleral Lenses. Optometry and Vision Science VOL. 90. No.10, October 2013.
  4. Otten HM, van der Linden BJJJ, Visser ES. Clinical Performance of a New Bitangential Mini-scleral Lens. Optom Vis Sci. 2018 Jun;95(6):515-522.
